ExplorerCases



Designed for: (protection, storage and transportation)

In industry  For civilian purposes  └rmed forces
  • Precision instruments
  • Optical equipment
  •
  • Computer systems
  • Tools
  • Calibration equipment
  • Equipment for field diagnostics
  •
  • Samples
  • Gas detectors
  • Measuring and control equipment
  • Equipment for welding
  • Equipment for application afloat
  • Fishing, hunting, hiking, sports
  • Cameras and video cameras
  • Automobile container
In emergency units
  • Oxygen supply systems
  • Night Vision Devices
  • Thermal imaging systems
  • Diving equipment
  • Searching and rescue equipment
  • Cameras and video cameras
  • >Defibrillation devices
  • Communication systems
  • First Aid Kits
  • X-ray and other scanning equipment
  • Equipment for weapons servicing
  • Equipment for rapid-deployment forces
  • General purpose equipment
  • Night vision devices
  • Equipment for advanced groups
  • Navigation equipment
  • Diving equipment
  • Means of communication
  • Optical devices and sights







Key features:
  • Fully sealed: prevents from water entering into container when fully submerged;
  • protection against moisture, dust and sand in accordance with IP67;
  • availability of valve which equalizes air pressure inside and outside the trunk-container;
  • wide operating temperature range: from -33°C to +90°C;
  • protection against distorting under load conditions and shock protection owing to special design of the hull;
  • availability of front and rear edges for the protection of latches and hinges;
  • corrosion-resistant metal and reinforced hinges which lock the lid in open position;
  • availability of mounting slots for the installation of equipment inside the trunk-container;
  • carrying handle of trunk-container is convenient and easy in use;
  • trunks-containers can be installed in stacks;
  • a number of models are equipped with wheels for transportation.







Protective trunks-containers, designed for transportation technical devices can be supplied in a standard colors:

 BLACK — "B",  GREEN MILITARY — "G",  ORANGE — "╬",  DESERT SAND  "D".

On customer's request it is possible to make cases in optional colors in agreed lot of goods. Additional payment will be required. More detailed information may be obtained while discussing specific order.

Samples are available for testing !


Model name Standard color
External dimensions,
AxBxC mm
Internal dimensions,
A / B / C (D+E), mm
Weight / Capacity / Floatage
Presence of
telescopic handle
Presence of
wheels for transportation
Drawing, all
dimensions, mm
3D   3D   360°
Small containers
1908 216 / 180 / 102 190 / 125 / 85 (20+65) 0,70 kg / 2 liters / 1,4 kg
1913 216 / 180 / 152 190 / 125 / 135 (20+115) 0,85 kg / 3 liters / 2,4 kg

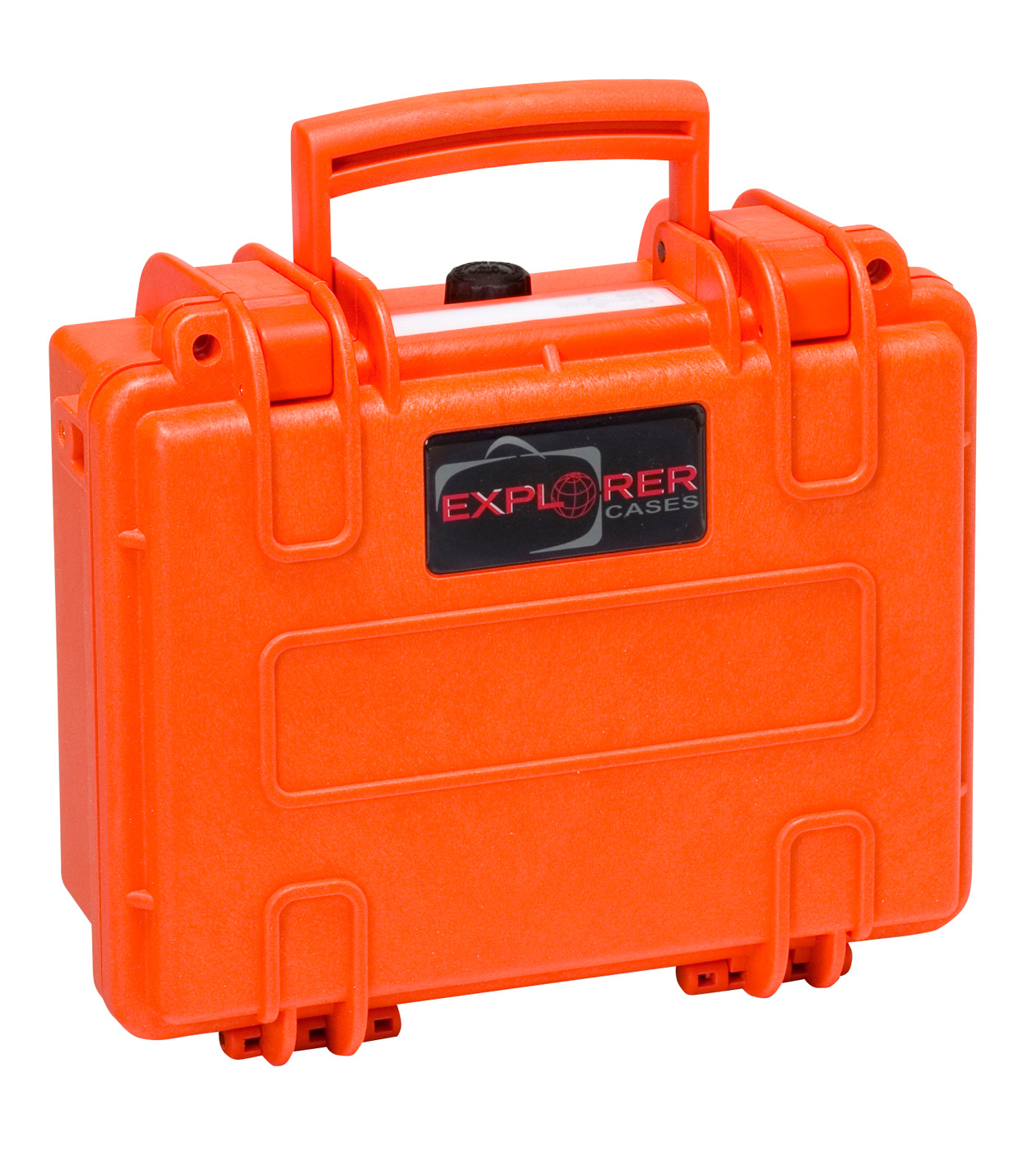

2209 246 / 215 / 112 220 / 160 / 95 (20+75) 0,88 kg / 3 liters / 2,3 kg
2214 246 / 215 / 162 220 / 160 / 145 (20+125) 1,16 kg / 5 liters / 3,9 kg
Light containers with removable cover
2712 305 / 270 / 144 276 / 200 / 120 (35+85) 1,70 kg / 7 liters / 4,2 kg

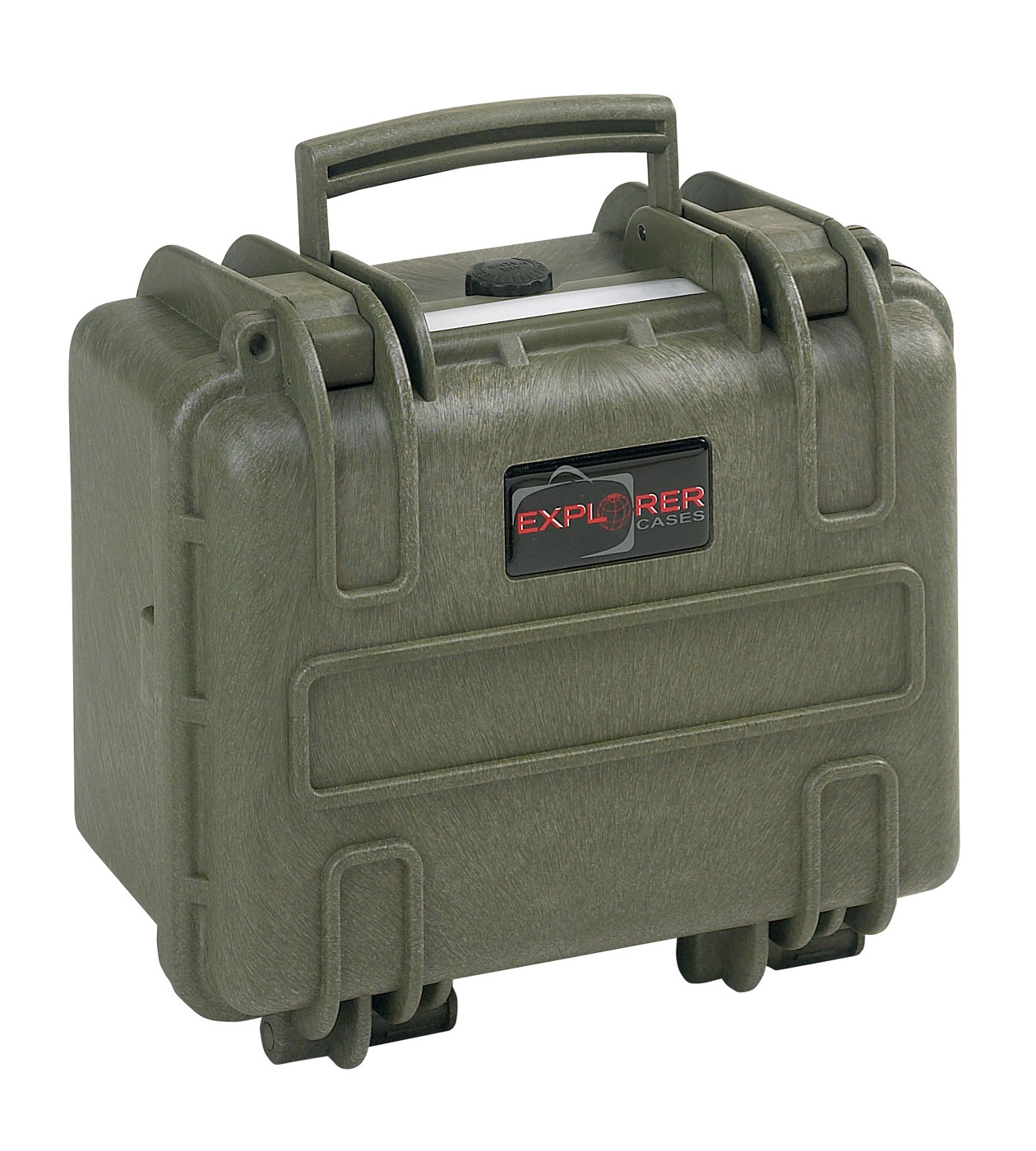

2717 305 / 270 / 194 276 / 200 / 170 (35+135) 1,93 kg / 9 liters / 6,7 kg
3005* 326 / 269 / 75  300 / 210 / 58 (20+38)  1,1 kg / 4 liters / 2,1 kg

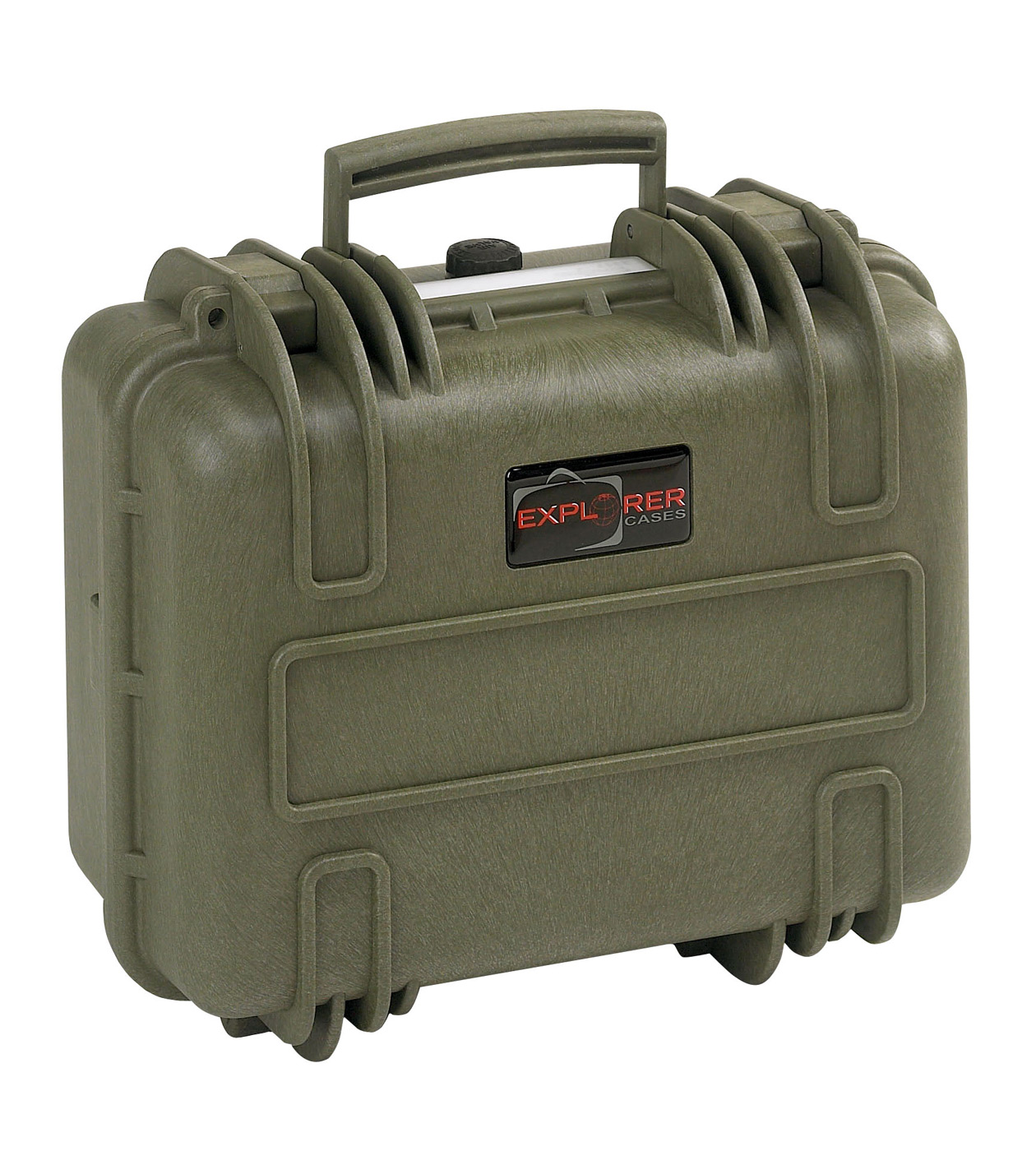

3317 360 / 304 / 194 330 / 234 / 170 (68+102) 2,40 kg / 13,1 liters / 7,0 kg
3317W* 360 / 420 / 194 330 / 350 / 170 (68+102) 2,92 kg / 20,0 liters / 10,6 kg
Containers for notebook's storage and transportanion
3818 410 / 340 / 205 380 / 270 / 180 (47+133) 3,00 kg / 18,4 liters / 12,4 kg
4412 474 / 415 / 149 445 / 345 / 125 (47+78) 3,40 kg / 19,2 liters / 10,7 kg
4419 474 / 415 / 214 445 / 345 / 190 (47+143) 4,00 kg / 29,0 liters / 29,2 kg
Medium containers
4820 520 / 435 / 230 480 / 370 / 200 (45+155) 4,50 kg / 35,5 liters / 24,7 kg
5117 546 / 347 / 197 517 / 277 / 173 (50+123) 3,80 kg / 25,0 liters / 15,8 kg
5122 546 / 347 / 247 517 / 277 / 217 (50+167) 5,00 kg / 31,0 liters / 21,5 kg
5140* 581 / 381 / 455 - / - / -  13,10 kg / - / -
5325* 607 / 475 / 275 538 / 405 / 250 (60+190) 8,25 kg / 53,0 liters / 37,2 kg
5326* 607 / 475 / 292 538 / 405 / 250 (60+190) 11,25 kg / 53,0 liters / 37,2 kg
                                               Large containers
5822 650 / 510 / 245 580 / 440 / 220 (60+160) 7,16 kg / 56,0 liters / 36,7 kg
5823 650 / 510 / 262 580 / 440 / 220 (60+160) 9,17 kg / 56,0 liters / 36,7 kg
5833 682 / 510 / 372 580 / 440 / 330 (60+270) 10,54 kg / 84,0 liters / 62,0 kg

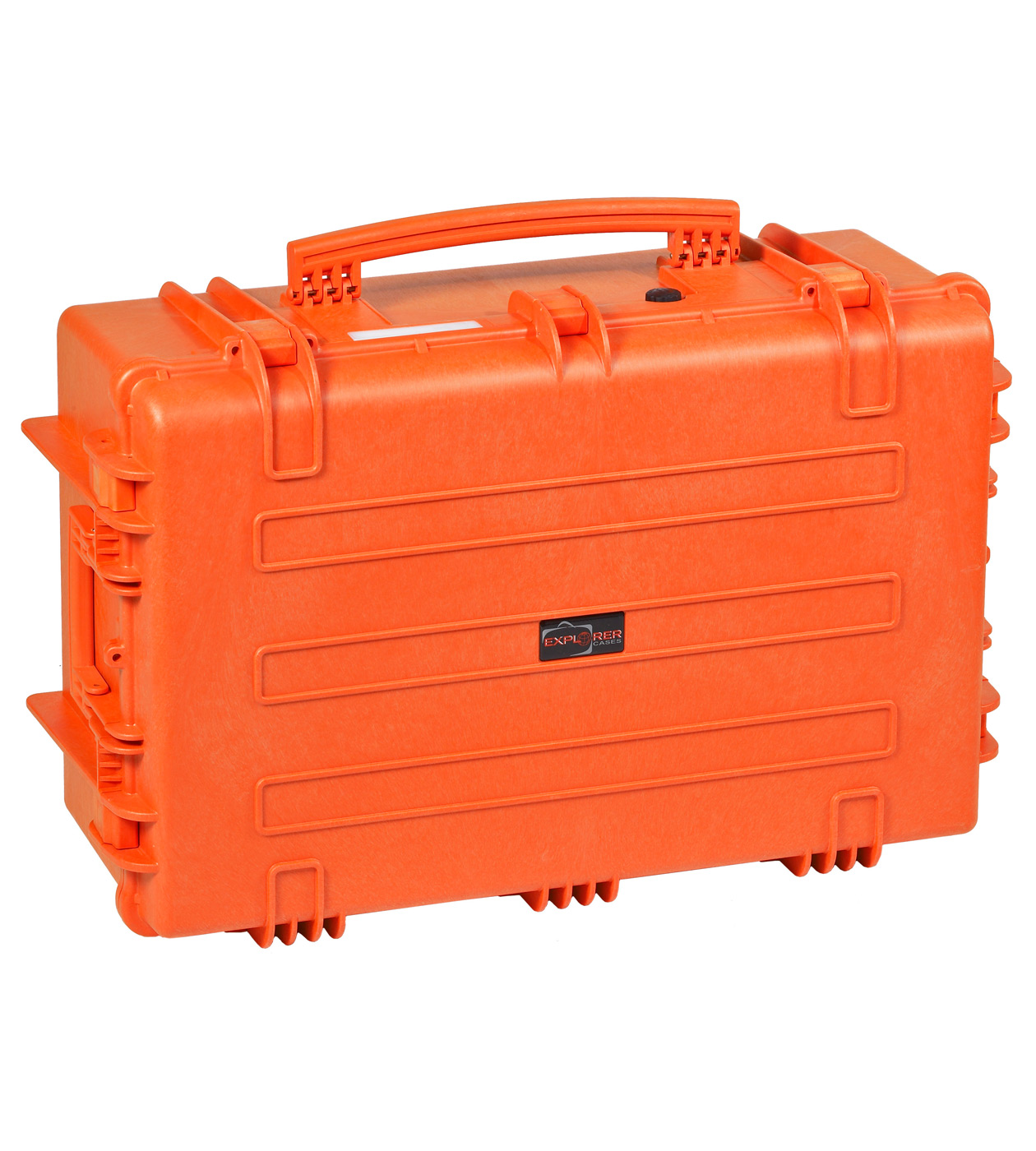

7630 860 / 560 / 355 765 / 485 / 305 (60+245) 11,00 kg / 113,0 liters / 81,8 kg
7641 860 / 560 / 460 765 / 485 / 415 (60+355) 15,02 kg / 154,0 liters / 118,5 kg

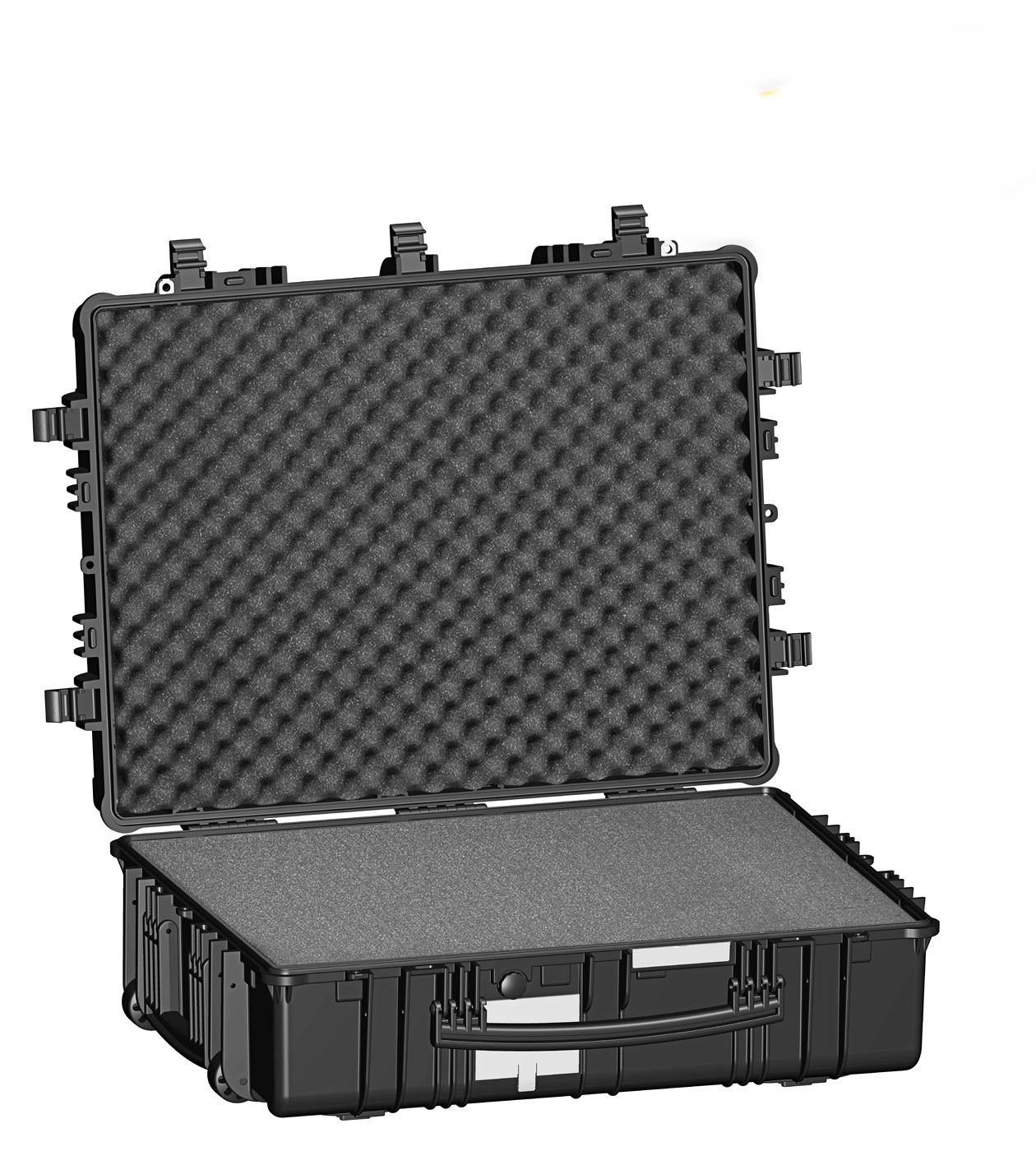

7726* 836 / 641 / 304 770 / 580 / 265 (90+175) 14,63 kg / 118 liters / 70 kg
7745* 836 / 641 / 489   770 / 580 / 450 (90+360) 19,47 kg / 200 liters / 144 kg
                                                    Weapon cases
9413* 989 / 415 / 157 939 / 352 / 137 (43+94) 6,70 kg / 45,3 liters / 27,9 kg
10826* 1178 / 725 / 287 1080 / 620 / 260 19,60 kg / 174 liters / 120,6 kg
10840 1178 / 718 / 427 1080 / 620 / 400 (200+200) 19,80 kg / 260 liters / 120,6 kg

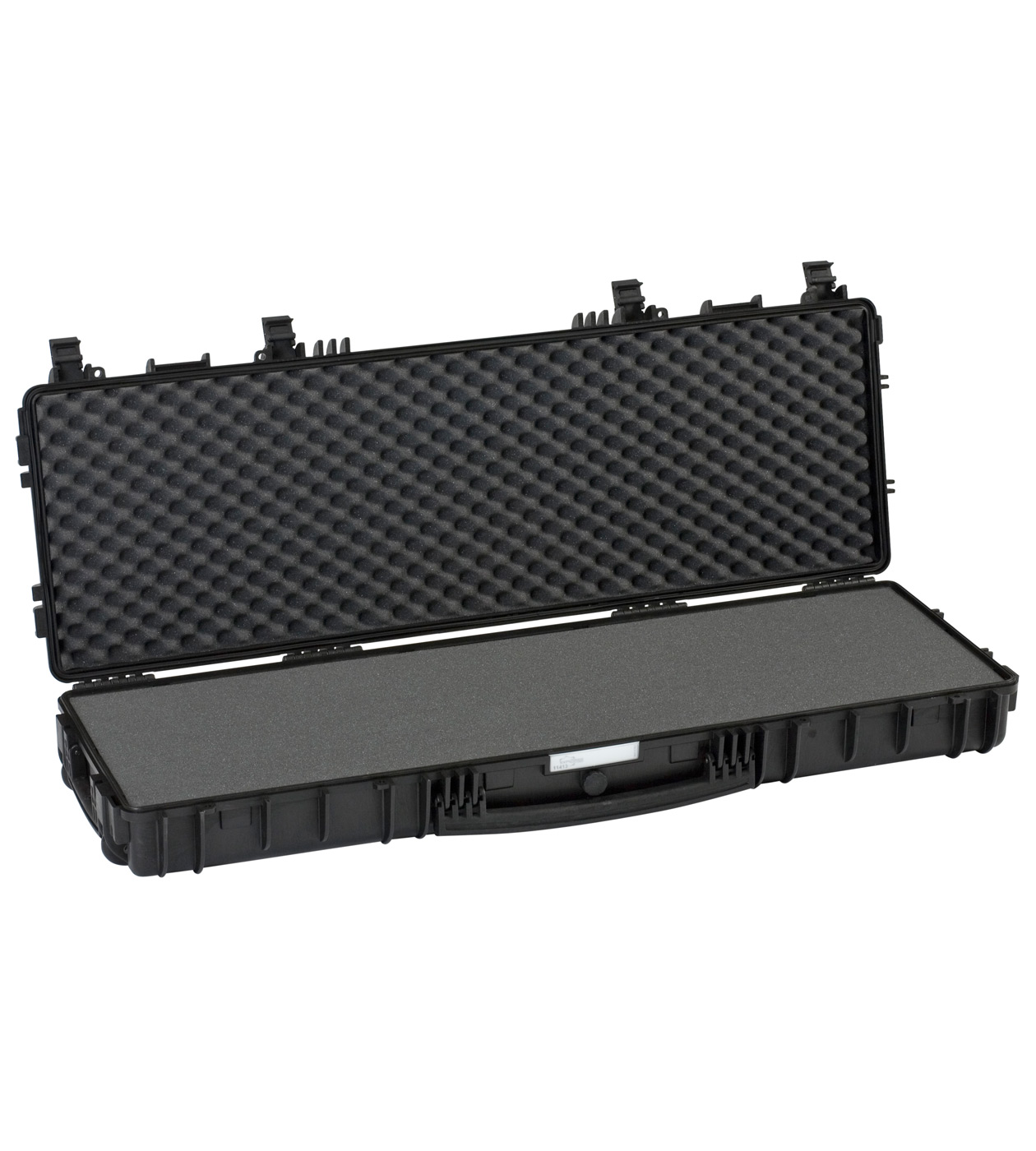

11413 1189 / 415 / 159 1136 / 350 / 135 (42+93) 7,80 kg / 53,7 liters / 33,3 kg
13513 1410 / 415 / 159 1350 / 350 / 135 (42+93) 8,70 kg / 63,7 liters / 39,5 kg

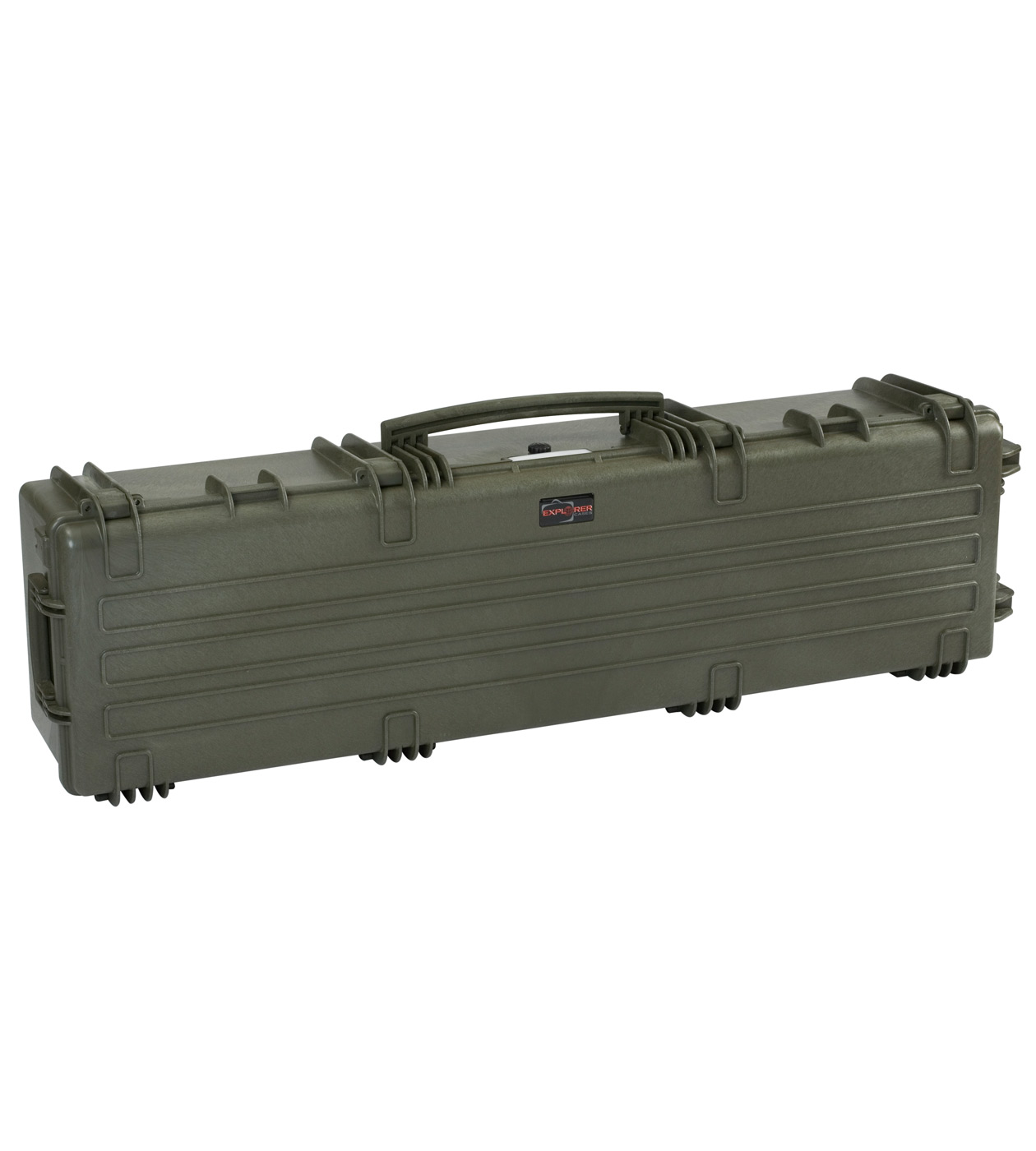

13527 1430 / 415 / 296 1350 / 350 / 272 (42+230) 11,70 kg / 128,5 liters / 97,5 kg
 - NEW !      IN STOCK !


Waterproof transport safety trunks-containers (cases) are ˝ertificated for conformity of Military standards: IP67 Dustproof - Waterproof; Defence Standard 81-41 Level J; STANAG 4280 (edition 2); Conformity with the Directive 2002/95/EC - MIL-STD 810F/810G (depending on models), DS 81- 41 (PART 3) with severity level Nato 1 & 2 e Military J; were tested for resistance to external factors (waterproof, falling, temperature difference).
