Slag Detection System (SDS)

Slag Detection System (SDS) uses the method of infrared thermography for non-destructive and non-contact detection of slag directly during the process of manufacture. With the help of SDS it is possible to control steelmaking process achieving maximum yields of high purity product.

Vario Cam @ thermographic video camera with high resolution matrix which is used in SDS provides continuous monitoring of metal stream during the manufacture. Once a stream of slag occurs, the system automatically generates the alarm signal. SDS is an effective tool to maintain quality and minimize losses during the manufacture of high-grade steel. In the process of work it is possible to customize and synchronize the system for a specific works conditions.

SDS functionality and benefits:

• status decentralized control, capability of remote access;
• flexible binding of the system to casting process, data recording during the production of steel as well as communication with other systems using TCP/IP or via technological interface;
• guaranteed issue of commands for the activation of metal supply stopping process;
• archiving “alarming” frames, videos and entire casting process data, sorted by time of output or loading;
• almost no maintenance required, no wearing parts;
• comfortable interface of data presenting in the enterprise network.

Interfaces available in a central wiring cabinet:

• potential free contact "System OK";
• potential free contact "Chamber temperature is normal";
• potential free contact "Detection process is activated";
• potential free contact "Slag - warning" ;
• potential free contact "Slag - alarm";
• analog output "Slag content" ( 4 ... 20 mA);
• relay input "Start / Stop / Detection";
• analog input "Converter tilt".

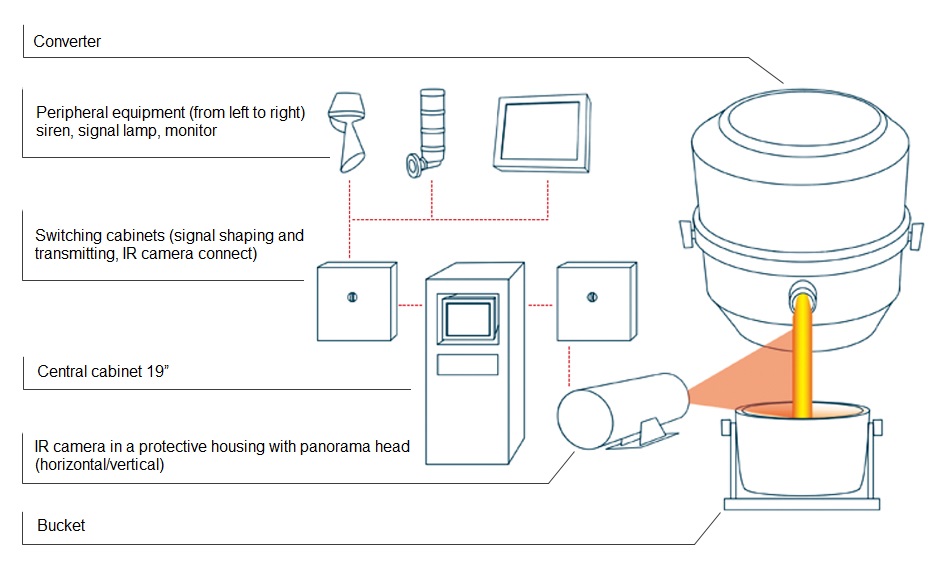

SDS structure:

SDS composition:

• 19”central cabinet, technological version;
• IR camera protective housing, stainless steel with vortex blasting and cooling, fit to hard conditions of operation;
• Vario Cam@ high-definition resolution IR camera which ensures uninterruptable video surveillance and accuracy of slag detection;
• for the peripheral components interconnect (IR camera, monitors, alerting devices) copper cables are used at distances of less than 300 m from central line and fiber optic cables at large distances
